Denver D12 Laboratory Flotation Machine CE

Metso/Denver D-12 Laboratory Flotation Machine CE Rated

Metso Part #: ZX11391925

Digital Tachometer

Voltage: 115/230-50/60hz

RPM: 1800

HP: 1/2

Shipping Dimensions: 48" x 24" 41"

Shipping Weight: 246 lbs

Download D-12 Parts Diagram PDF - 6 mb

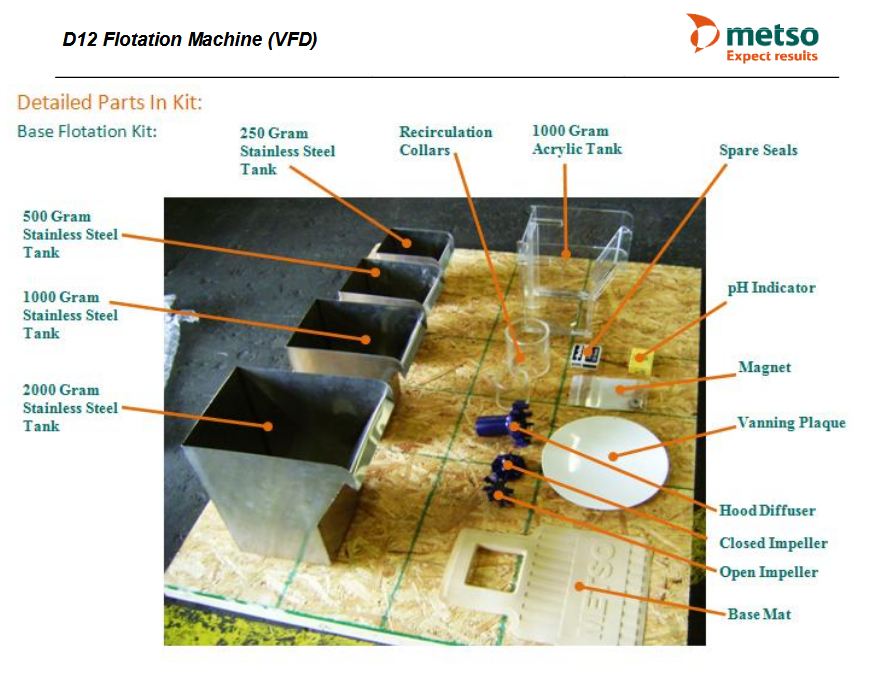

Metso/Denver Model D-12 Laboratory Flotation Machine INCLUDES the following parts:

-Four (4) Stainless Steel Tanks (Cells) in 250, 500, 1000 and 2000g (One Each)

-One (1) 1000g Acrylic Tank

-One (1) 3-3/8" Diameter removable Urethane diffuser

-One (1) 5-1/4" Diameter removable Urethane diffuser

-One (1) 2-7/8" Removable Urethane open type impeller

-One (1) 3-3/4" Removable Urethane open type impeller

-One (1) 2-7/8" Removable Urethane closed type impeller

-One (1) Vanning Plaque

-Two (2) Plastic recirculation collars - One Large / One Small

-One (1) Variable speed drive with digital tachometer -One (1) hydrion pH indictor and Small Hand Magnet

-One (1) Combination agitator and attrition scrubbing kit - includes Lower Spindle Cap, Attrition Spacer, Scrubber (1-1/8"), Assembly Tank, Agitator Jar (Pyrex), Agitator Spacer, Propeller(single), Propeller (double) and Oil seal

This Machine includes all parts shown:

Replacement Parts Available for additional cost

Features:

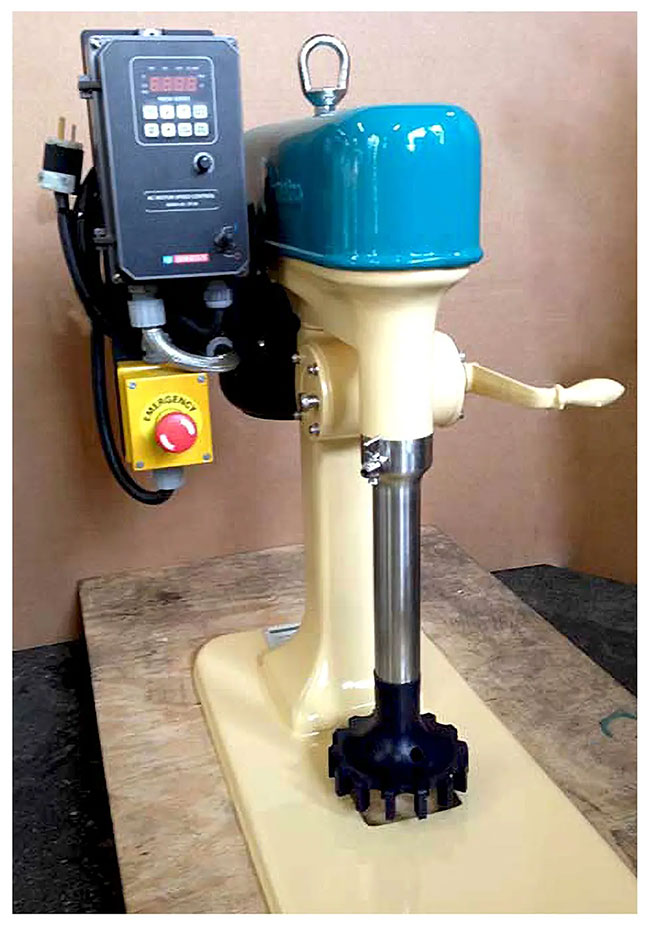

Stainless steel shaft with anti-friction spindle bearings and stainless standpipe with air control valve.

Mechanism is supported on a spring-balanced movable arm that is raised or lowered on a column by a hand crank through rack and pinion bearing and can be locked at any desired height.

Includes a 1/2 HP, single phase, 1800 RPM TEFC motor (prewired for 115 volt/60 hz, easily reconnected for 230 volt 50-60/hz),  variable speed VFD drive and drive guard.

New CE rated design, digital tachometer, variable speed via VFD (variable frequency speed controller).

Do not use on a GFI circuit. This will cause the circuit breaker to trip and the equipment will not operate.

Download Instruction and Operation Manual PDF - 1.6 mb

Download Instruction and Operation Manual for Legacy (old) model PDF - 1.1 mb

Download CE Certificate and Certificate of Conformance PDF

Download Instructions for setting voltage of VFD drive

Replaces Metso # 533000
