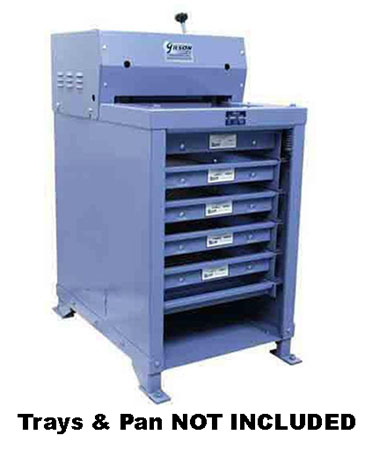

Gilson TS-1 Testing Screen, 5 Tray Capacity - 115v / 60hz

Gilson TS-1 Testing Screen, 5 Tray Capacity – 115v / 60hz

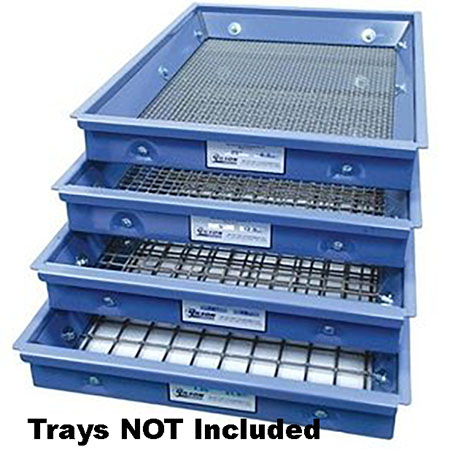

Does not include Trays or Pan

The Gilson Testing Screen is a high-performance testing equipment for rapid particle size determinations on large samples of aggregate, slag, ores and other coarse materials. It’s great for labs that do a lot of particle size testing. The Gilson Testing Screen is known for its high screening efficiency, ensuring accurate particle size analysis.

A quantity of 6 tray slots holds 5 Screen Trays and a dustpan. This eco-friendly screen shaker is for labs with moderate particle testing workload.

Gilson Testing Screen (115V, 60Hz)

Particle Size Range 4in to #4 (100.0mm to 4.75mm)

Screen Tray Capacity for TS-1 Model: 5 tray slots plus 1 for pan

Maximum Sample Volume 1ft³ (28.3L)

Motion/Agitation Vertical Vibration

Mounting Capability Yes, must be bolted to floor

Electrical 115V / 60Hz, 9.2 amps

Dimensions for TS-1: 23 x 31 x 43in (584 x 787 x 1,092mm), WxDxH

Weight of TS-1: 405.0lb (183.71kg)

Does not include Trays or Pan
