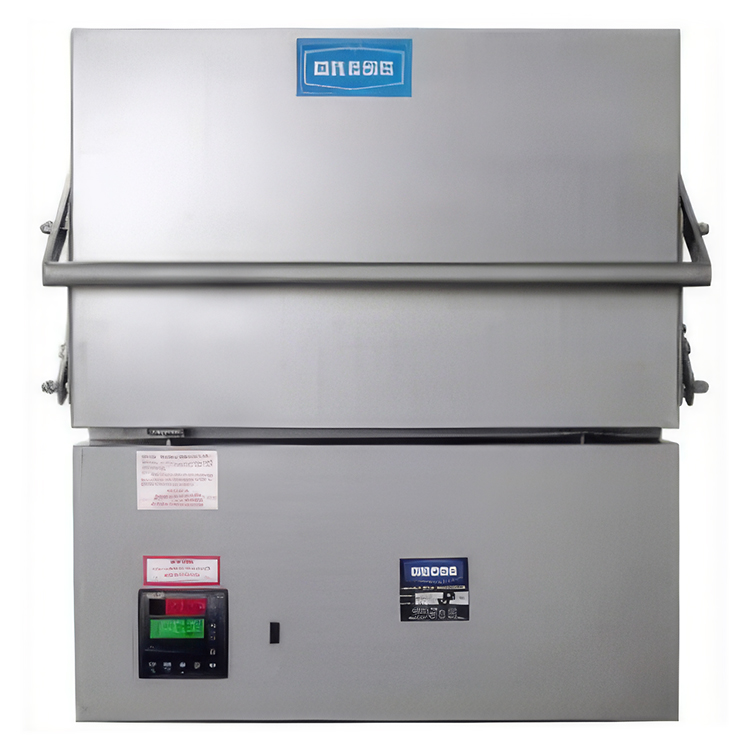

Cress C-162010 Furnace with Watlow PM6 controller

Description

Cress C-162010 Furnace with Watlow PM6E controller

USES: This furnace is designed for general use in the shop, laboratory or factory that require temperatures from 300^oF to 2250^oF. Their use includes heat treating metals, ashing processes, assaying and all types of testing.
TEMPERATURE CONTROLS: Auto tuning microprocessor-based Watlow PM6 controller. Solid-state zero voltage switching of power to elements improves temperature control. Other Controllers available.
ELEMENTS: Cress winds precision (digitally controlled element winder) high-temperature iron-aluminum alloy wire into elements and mounts them on the side walls in alumina plates
GENERAL CONSTRUCTION: Case constructed from heavy gauge sheet steel and finished in gray hammer tone enamel. The easily operated, counter-balanced door is always away from the operator. All walls and the door constructed of the finest quality -insulating firebrick backed by up with 1900^oF block insulation (there is no asbestos).
SAFETY SWITCH: These models come equipped with a door safety switch. When door opens, elements disconnect from the power source. Solid-state zero voltage switching of power to elements.

Inside dimensions: 16" wide x 20" deep x 10" high
Outside dimensions: 29" wide x 34" deep x 31" high
Shipping Weight: 400 lbs
Shipping Dimensions: 57" x 39" x 41"

Volts: 230
Kilowatts: 9
Insulation Thickness: 4"
Max F Temp: 2250
