5 Liter Benchtop Rotary Sample Divider – 120v, 60hz, 1ph

Description

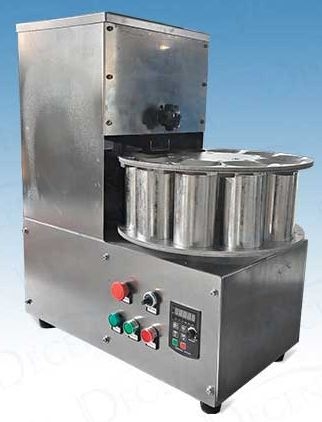

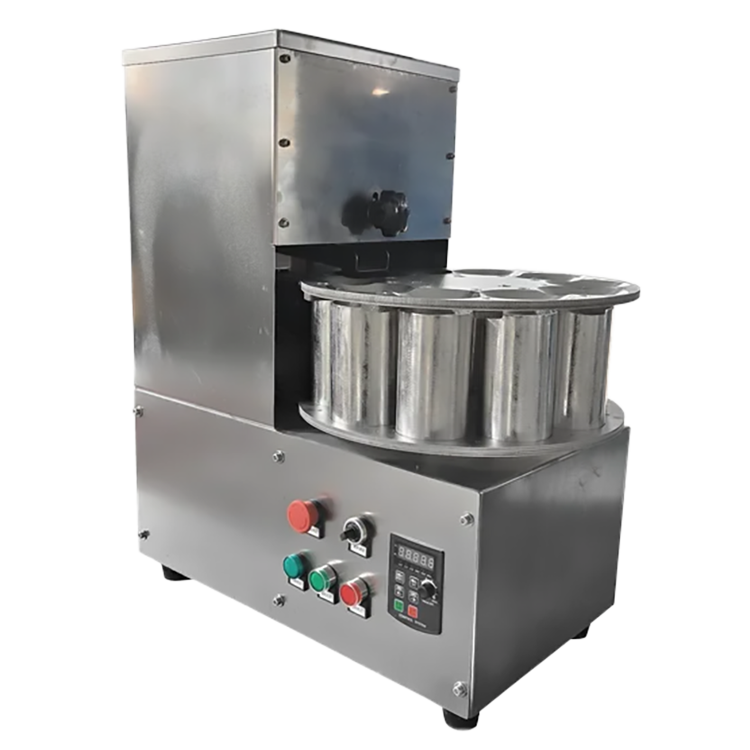

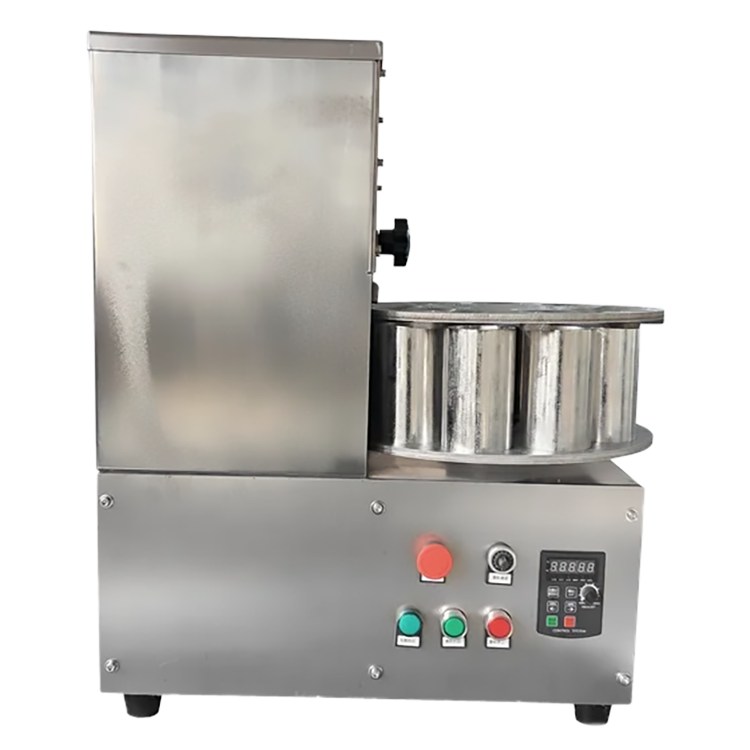

5 Liter Benchtop Rotary Sample Divider

This Benchtop Rotary Sample Divider divides the test sample into 10 representative samples with high subdivision accuracy.

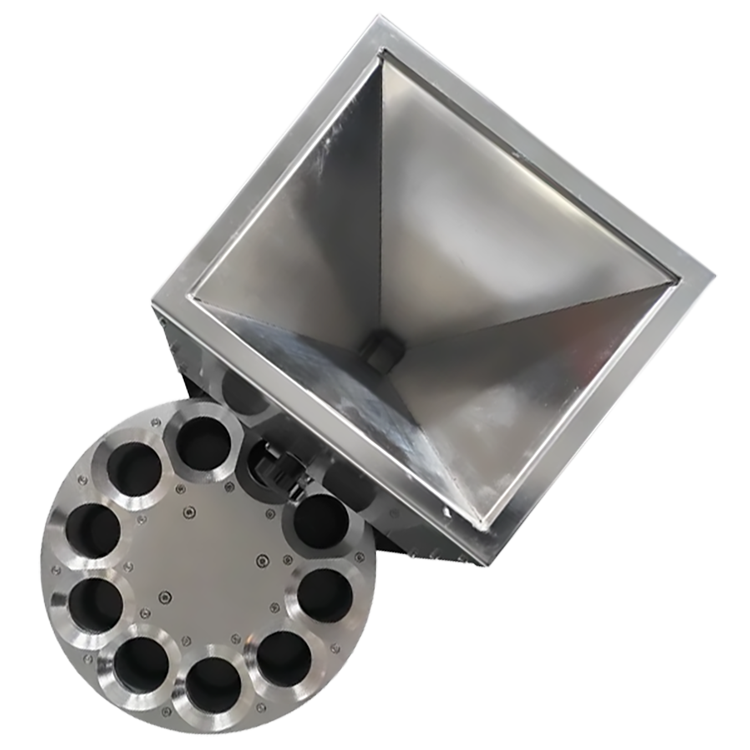

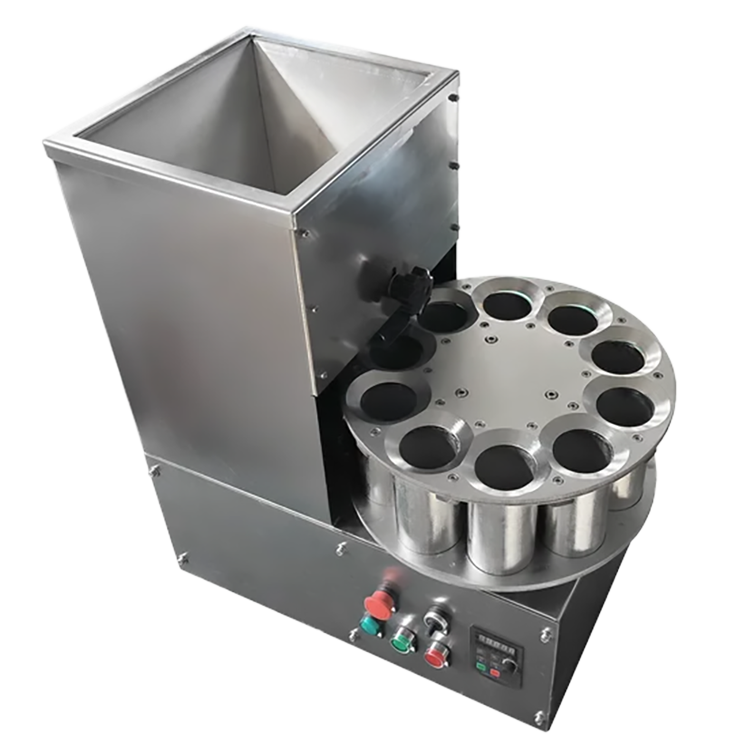

The divider utilizes a stainless steel hopper, vibratory feeder and stainless steel buckets. It is simple to operate, easy to clean and avoids sample contamination. Constant rotation speeds of the receiving buckets improve sample reduction accuracy resulting in high consistency.  It will  handle large volumes of samples continuously.  This divider can be used on the floor or on a bench (weight approximately 225 pounds).

The hopper holds 6 liters.  You can add more material to the hopper and continue the dividing process until the containers are full (approximately 60 liters total).

Features:

Hopper Capacity: 5L
Bucket Capacity: 6L/pc
Bucket Quantity: 10pcs
Acceptable Particle Size:  3mm-13mm (1/8″-1/2″)
Division Rate: 1/10
Power: 1.2kw (1.5 hp)
Voltage: 120V / 60hz / 1ph
Variable Speed: 6-60RPM
Overall Dimensions: 700 x 410 x 740mm (27′ x 16′ x 29″)
