100-6B Cress Furnace with Digital Control – 110v w/vent

Description

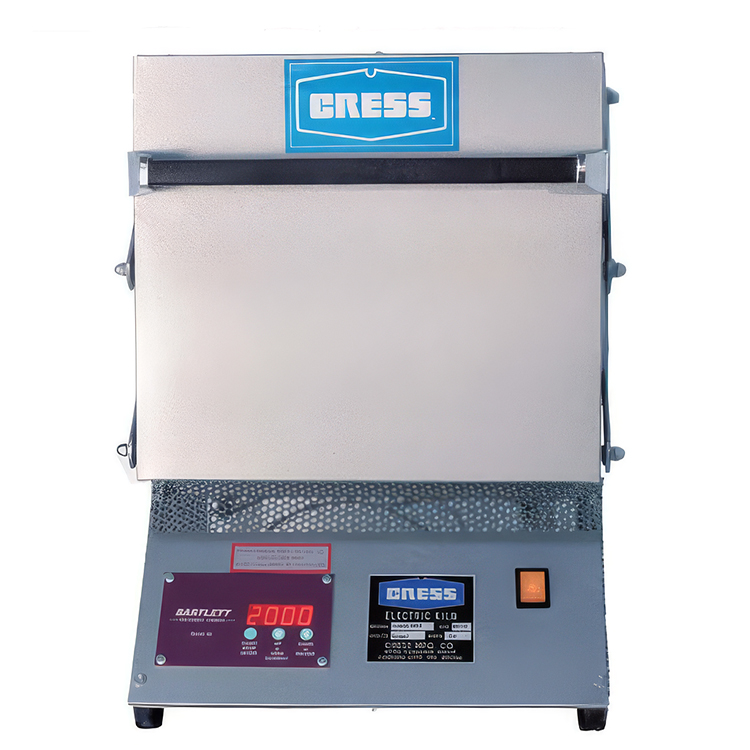

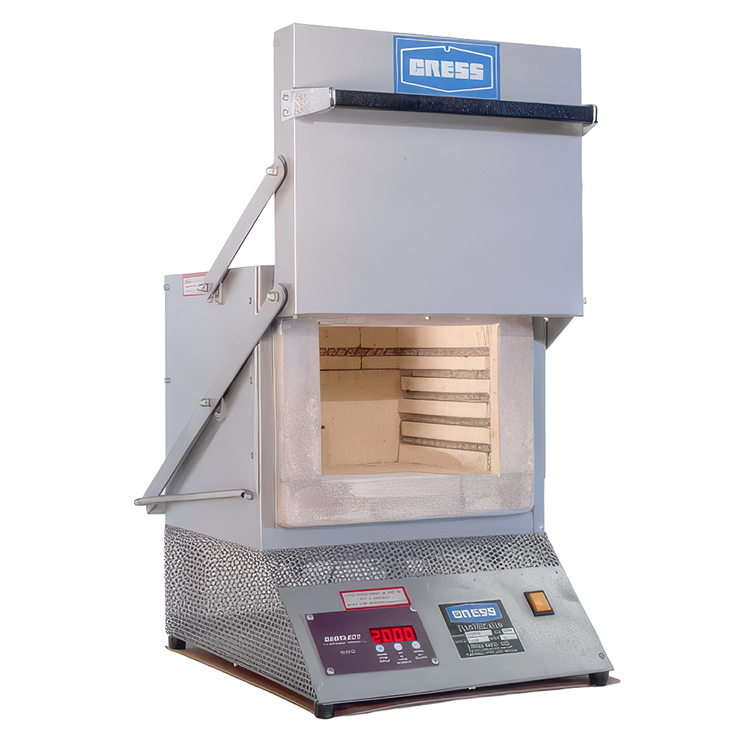

Cress C1006B Furnace 110 v  – Digital Controls

C100-6B has a digital controller with built in soak timer and up to four programs that will make your work a lot easier. Just input your program on the controller and you are set. Among the many uses are: Assaying, small jewelry, metal enameling, glass, low fire ceramics, or use it as a test kiln.

This furnace includes the vent porting option adds a 1" hole in the center of the roof, and an adjustable inlet port with swing gate in the door.

Maximum Intermittent Temperature: 2000°F
Maximum Continuous Temperature: 1800°F
Inside dimensions: 8.5" W x 10" D x 6.5" H
Outside dimensions: 14.5" W x 17.5" D x 16.25" H
Shipping Dimensions: 25" x 24" x 23"

Volts – 115
Amps – 12
Kilowatts – 1.4
Fuse size – 15
Wire size – 10
Connection type – 15 amp cord
Receptacle – NEMA 5-15R

Download – C100-6 Manual Instructions.pdf

Download Element Replacement Instructions

C1006 C100-6 C1006B C100-6B
