Bico BADGER 5″ x 7″ Jaw Crusher – 5HP

Description

Motor Starter NOT included
** Stand Sold Separately **

#24302:
5″ x 7″ Badger Jaw Crusher 5HP – 230V, 3ph, 50-60Hz
Includes: motor and guards.

#24302-480:
5″ x 7″ Badger Jaw Crusher 5HP – 460V, 3ph, 50-60Hz
Includes: motor and guards.

#243021:
5″ x 7″ Badger Jaw Crusher 5HP – 230V, Single (1) Phase, 50-60Hz
Includes: motor and guards.

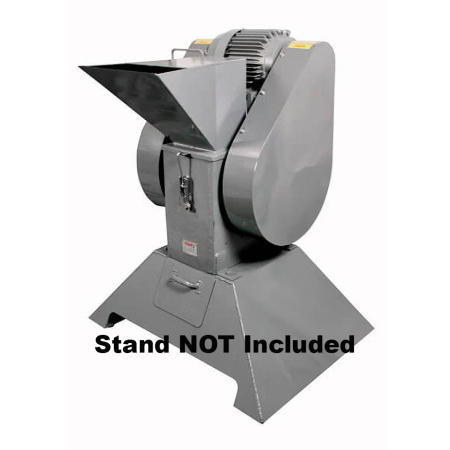

Our Badger Crusher pictured here has the largest capacity of the three crusher models. All it’s crushing surfaces are readily accessible for cleaning, and the single-toggle, dual-motion makes these crushers unique to the industry. This oscillation allows for smaller, more efficient motors to be used without sacrificing productivity.

GENERAL SPECIFICATIONS
Capacity: 1300 lbs (per hour)
Jaw Capacity: 5″ x 7″ (inches)
RPM: 400
Reduction Size: 1/8″ Inches (minimum) – 3/4″ Inches (maximum)
3 phase motor details 230v/460v – 60 hz – 12.8amps/6.4amps
Shipping Dimensions: 43″ x 36″ x 42″
Shipping Weight: 840 lbs

Click Here For: Badger Instructions and Maintenance (PDF)
