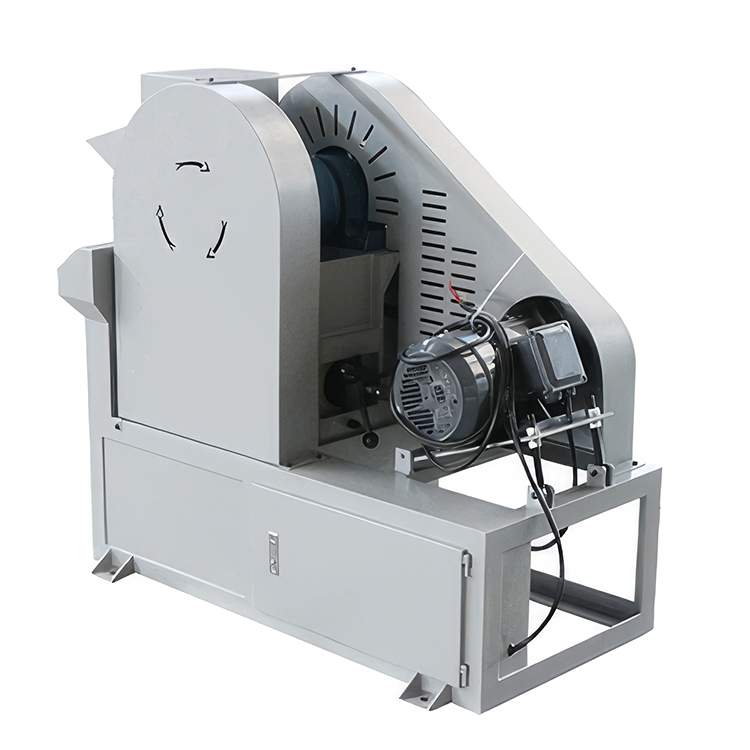

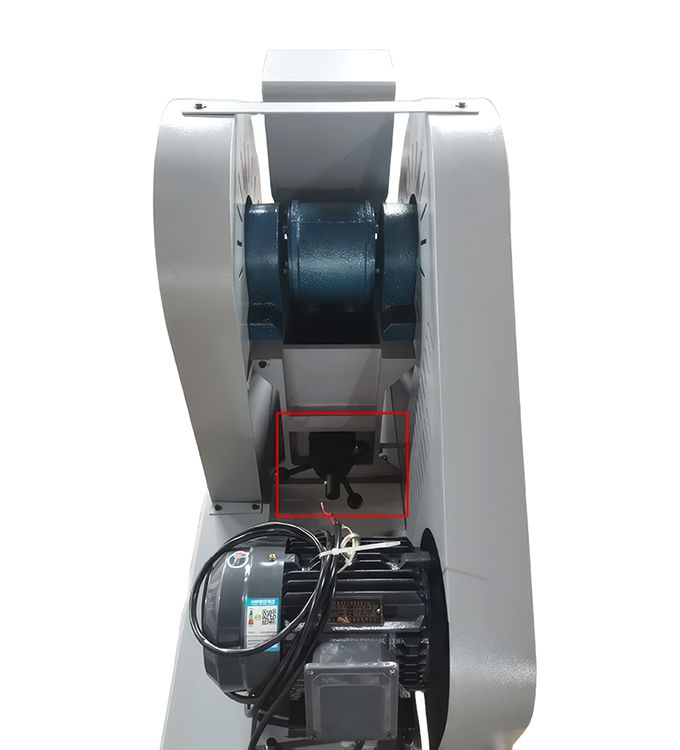

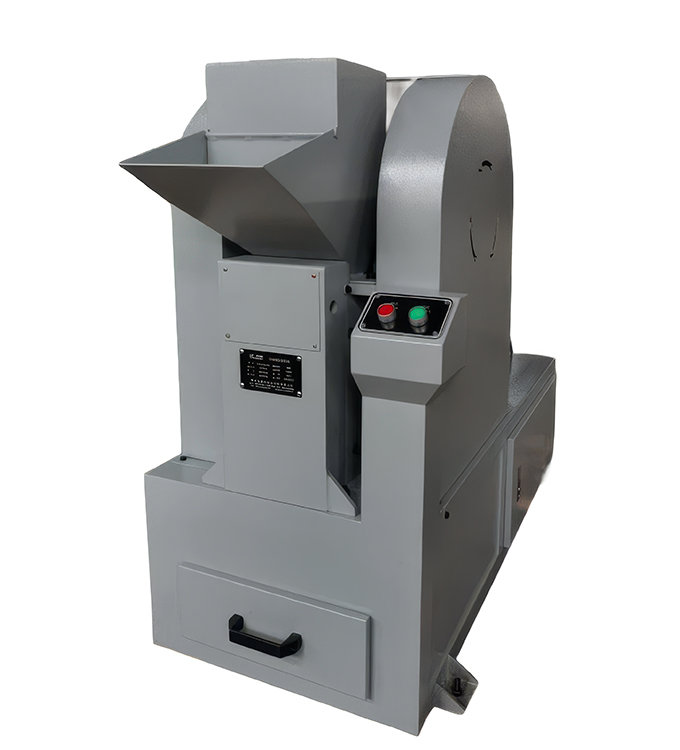

DRAGON 5″ x 6″ Jaw Crusher – 5 hp – 3 ph – 460 v – 60 Hz

Call for price

SKU: 24550 Category:
Technical Data Sheet

Description

DRAGON 5″ x 6″ Jaw Crusher – 5 hp – 3 ph – 460 v – 60 Hz

Includes:
5 HP 460v 60hz 3ph motor
Flywheel guards
Motor starter
Stand with product drawer

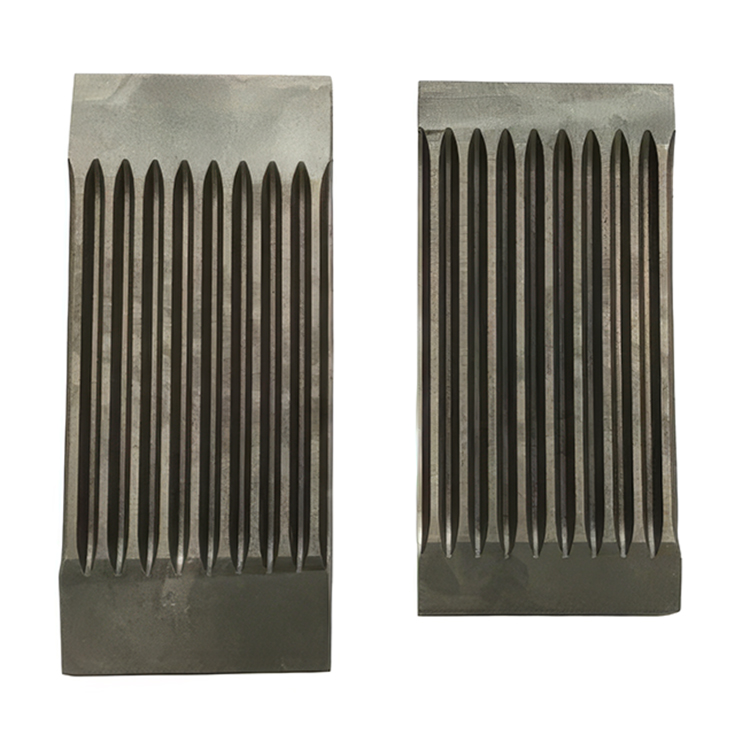

Chrome steel wear plates
Feed chute with safety baffle
Dust extraction port

Jaw Plate Material Heat Treated Chrome Steel
Input size mm (inches) ≤100mm (< 4 in)
Output Size mm (inches) 3-20mm adjustable (1/8-3/4 in)
Min.Output Size mm (inches) ≤3 (≤1/8 in)
Throughput kg/h (lb/h) 500-3000 (1000-6500)
Shaft Speed (r/min) 285
Power (kw) 4
Power Supply 480V/60Hz-3 phase
Overall Size mm (inches) 1200×670×1200mm (48x26x48 in)
Weight kg (pounds) 380 (850 lbs)

Automatic, pressurized lubrication system for toggle bearing

Additional information

Weight 850 lbs
Dimensions 53 × 40 × 55 in
