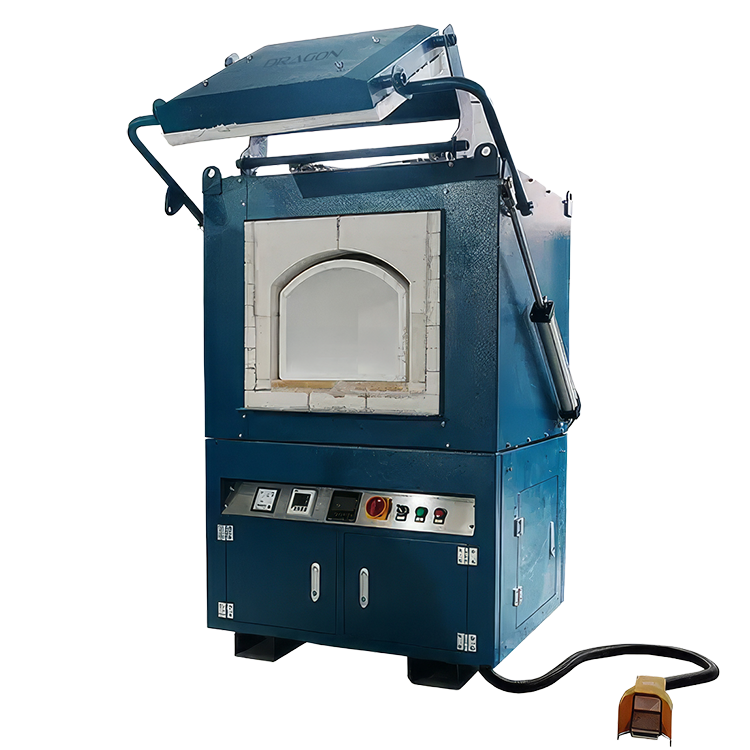

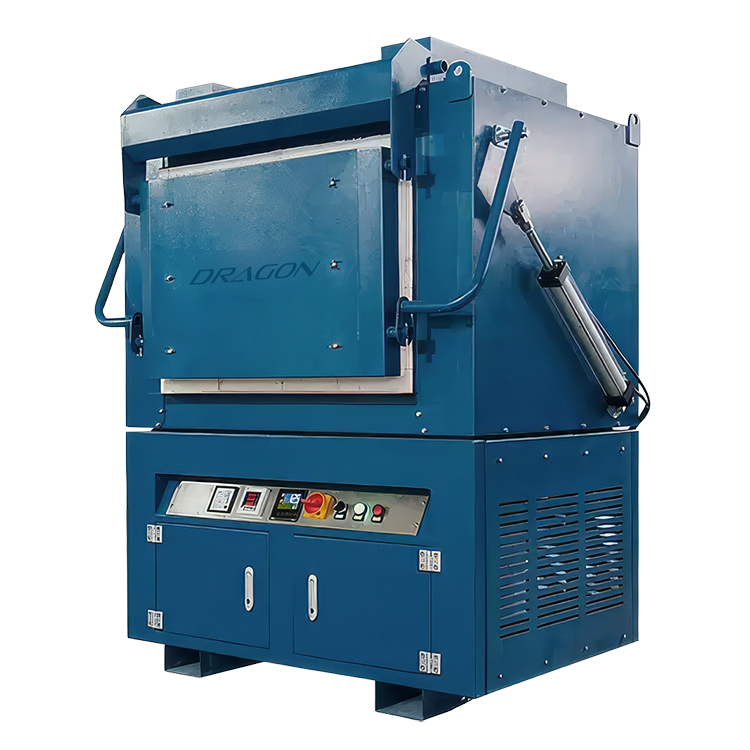

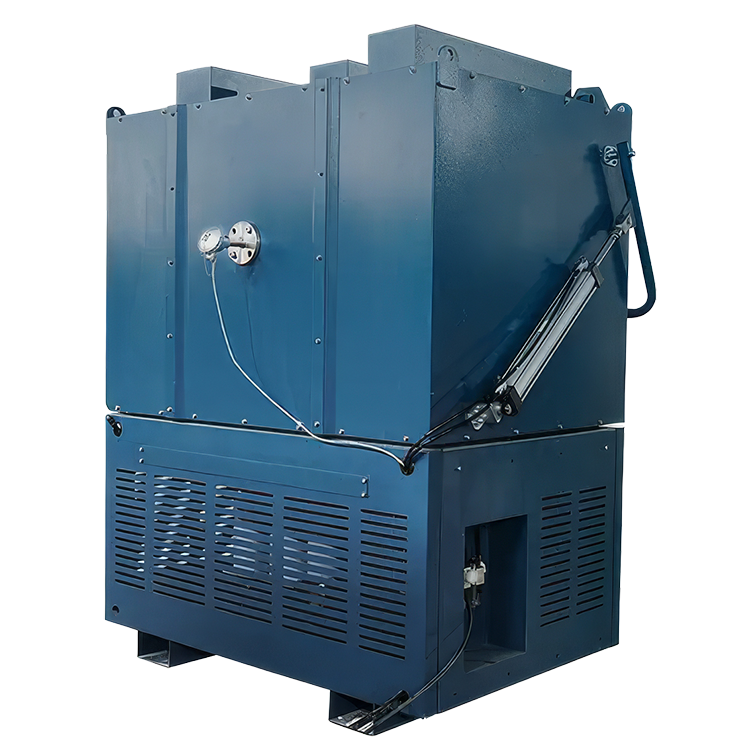

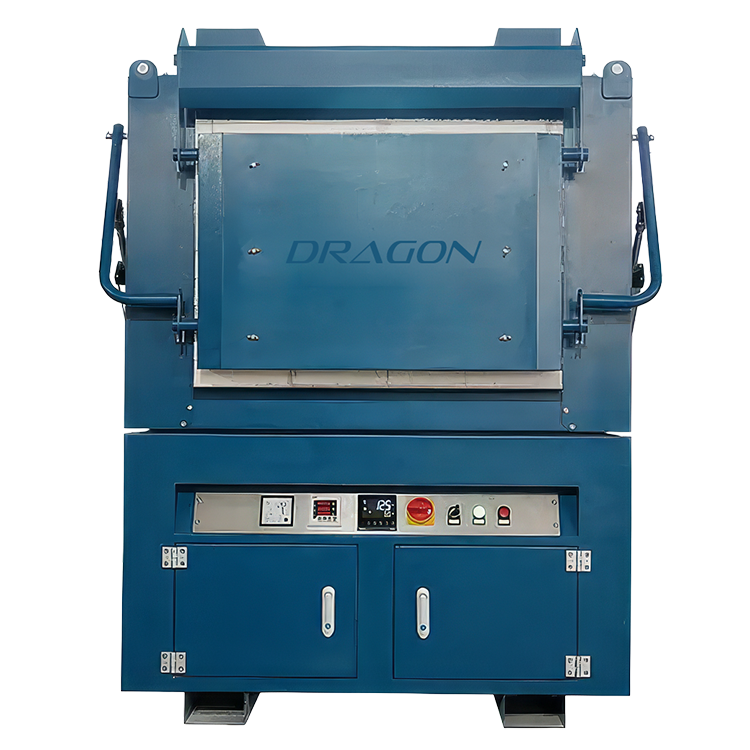

Dragon Electric Fusion Furnace – SiC Elements – Air Door – 460v / 60hz / 3 ph

Description

Dragon Electric Fusion Furnace

Industrial-grade compatibility with multipour and multiload systems boosts efficiency
Precise temperature control ensures consistent heating
Safety features include electronic protection and hands-free pneumatic doors
Energy-efficient environmentally friendly design

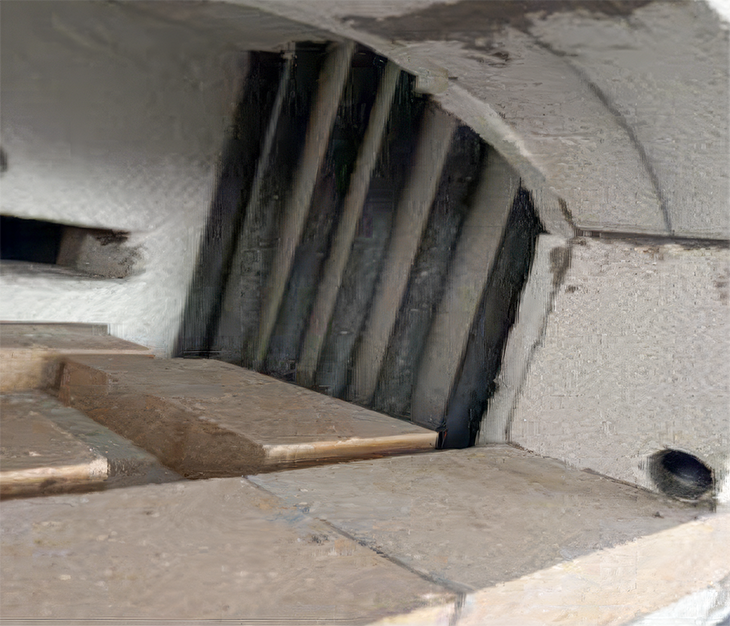

6 U-Shaped (SiC) heating elements.

Crucible Load Capacity:
(the recommended loading capacity is less than the actual max. loading capacity, taking into account the loading and unloading the crucibles with the assistance of tools)
20 x #5 / 50g / 65g
24 x 40g / 55g
30 x 30g

Muffle Working Area (W x D x H):
18.5″ x 22.5″ x 20.9″ (47.0cm x 57.0cm x 53.0cm)

Rated Temperature: 1200°C (2192°F)
Heating Element: Silicon Carbide Rod
Voltage: 460v / 60 Hz / 3 ph
Watt (kW): 22-27
Thermocouple: Type “K” or Type “S”
Door Mechanism: Pneumatic

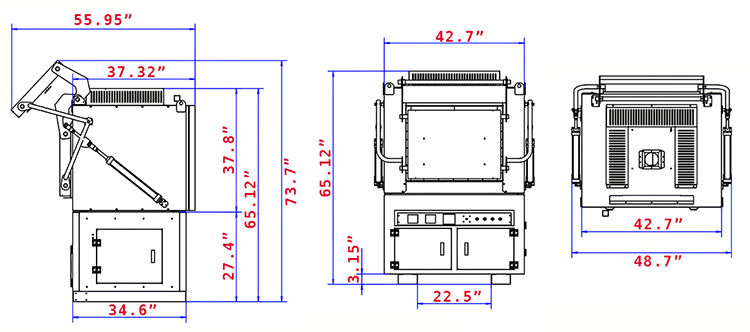

Outside Dimensions (W x D x H)
48.7″ x 44.6″ x 65.12″ (123.7cm x 113.3cm x 165.4cm)
(Height with Air Door Open: 73.7″ (187.1cm)

Approx. Shipping Weight: 1800 lbs / 820 kg
