Name: Dragon LM Pulverizer with "Mill-Mate", 460v - 60Hz - 3ph
SKU: 25126
Price: 22530.85 USD
Availability: InStock

Description

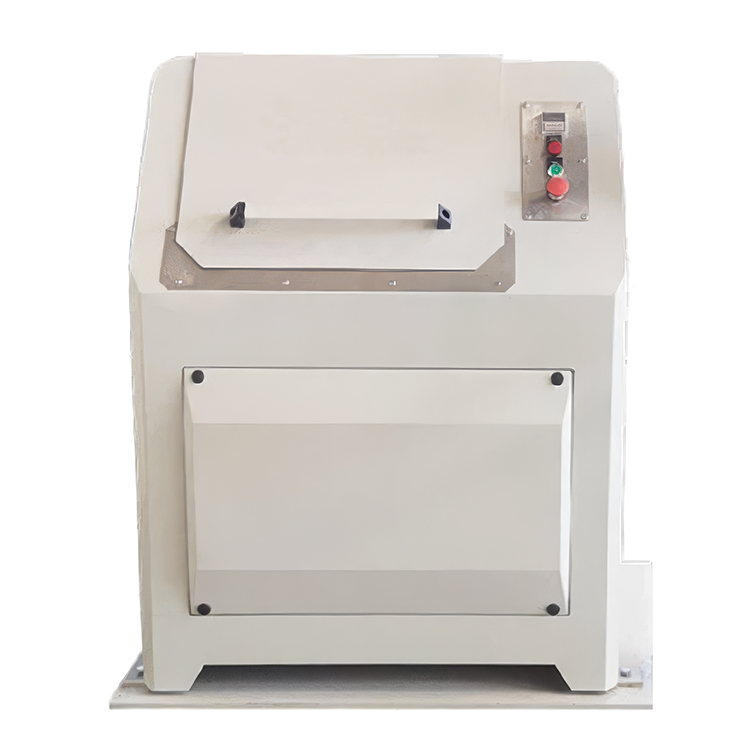

Dragon LM Pulverizer – 460v – 60Hz – 3ph

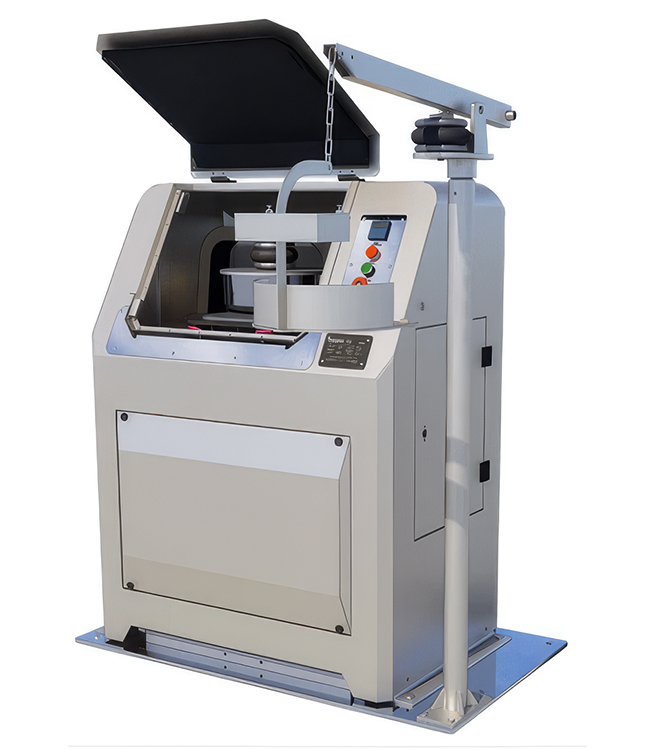

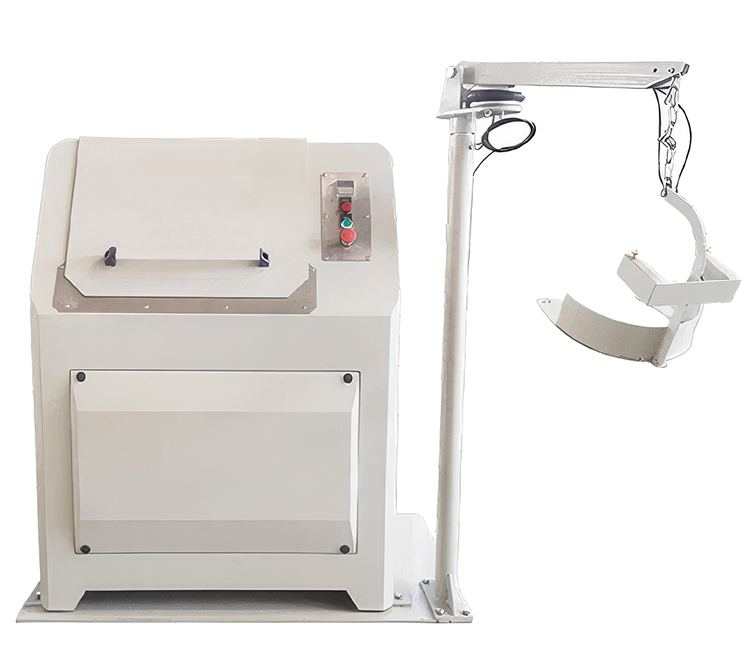

Includes MillMate pneumatic lifting device for “weightless” handling of the heavier bowls.

For efficient grinding of production samples. The Vibratory Pulverizer can use various sized grinding component sets (sold separately). A specially designed motor directly coupled to a rotating eccentric swings the bowl and components at a precise speed and distance for maximum grinding efficiency.

Dragon LM Pulverizer Features:
460v – 60Hz – 3p motor
Starting switch and timer.
Sound Enclosure (Insulated cabinet for reduced operating noise).
Accommodates bowls 125cc – 2000cc (may require adapter/spacer ring)

Benefits

■ The drive arrangement delivers more power to the grinding bowl and optimises motor life by not exposing it to direct vibrations while operating.

■ Rapid preparation of up to 1.8 kg of mineral ore for analysis.

■ Ability to be fitted with 800, 1000, or 2000 cc single disc-type grinding bowls, in addition to the standard-size ring and roller grinding bowls.Optional bowl materials include chrome steel and standard (low chrome) steel.

■ Clamp and platform insert seat can be easily unbolted and replaced if necessary.

■ Sealed bearings throughout reduce maintenance time and cost.

■ Removable cabinet panels allow for quick and easy maintenance access.

■ Mill assembly can be removed, independent of the cabinet, transported and replaced simply by using a forklift or pallet truck.

Efficiency
Samples are typically ground to 95% minus 75 micron in approximately three minutes, with the user-friendly pneumatic bowl clamping adding to the efficiency. This also reduces manual handling, as well as the option of having the pneumatic lifting device.

Specifications

Feed size<10 mm

Grinding capacity:up to 1800 g

Compatible grinding bowls: 125 cc, 300 cc, 400 cc, 800 cc, 1000 cc,2000 cc

Grinding bowl material:Standard Steel, Chrome Steel

Motor power:2.2 kW

Electrical requirements:380–415 V 50 Hz three phase AC or other power

configurations as required:Compressed air requirements Clean, dry air service required for pneumatic bowl

clamping: 700 kPa supply with a minimum flow of 1 L per minute

Mill dimensions (W x D x H):1046 mm x 719mm x 1253 mm

Grinding components/bowls not included
The following grinding sets can be used (sold separately):
Item 28630: B125 125cc.
Includes one ring and puck. Use with item 256415 spacer ring adapter.
Item 286385: B300 300cc.
Includes two rings and puck. Use with item 256415 spacer ring adapter.
Item 286385: B400 400cc.
Includes one ring and puck. Use with item 256415 spacer ring adapter.
Item 28632: B800 800cc.
Includes one grinding disk. Use with item 256416 spacer ring adapter.
Item 28640: B1000 1000cc.
Includes one grinding disk. Use with item 256416 spacer ring adapter.
Item 28641: B2000 2000cc.
Includes one grinding disk. No spacer ring adapter used.
