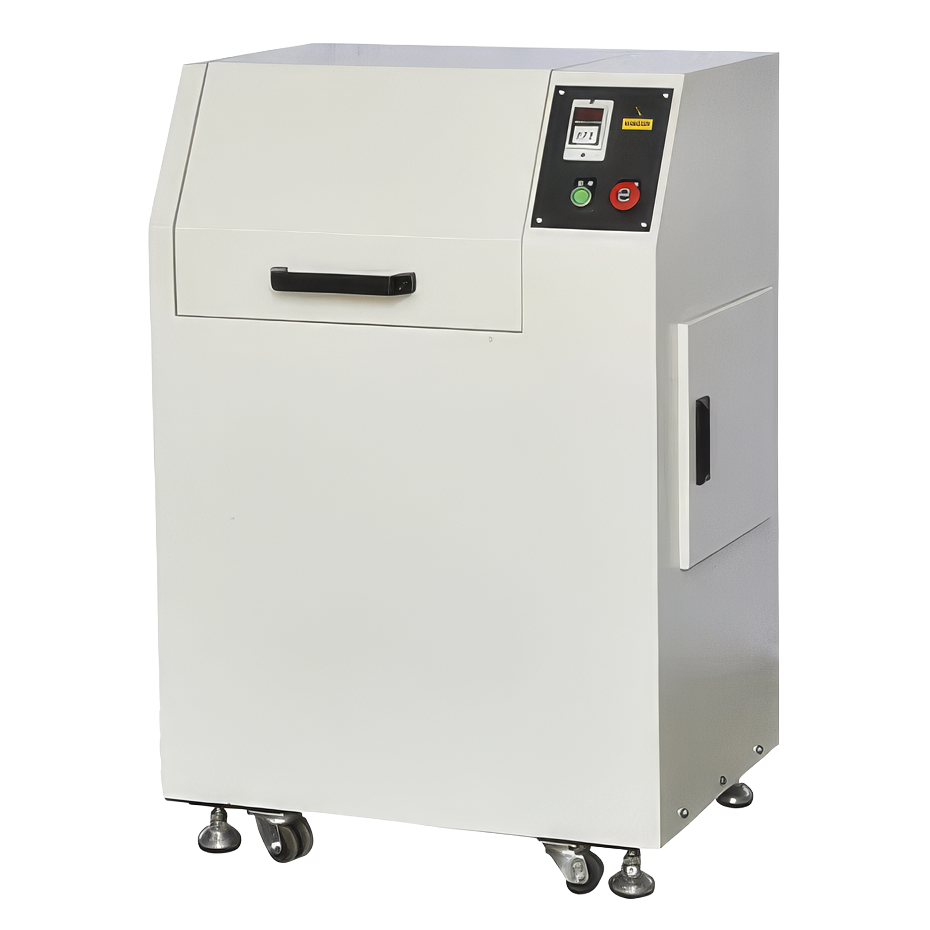

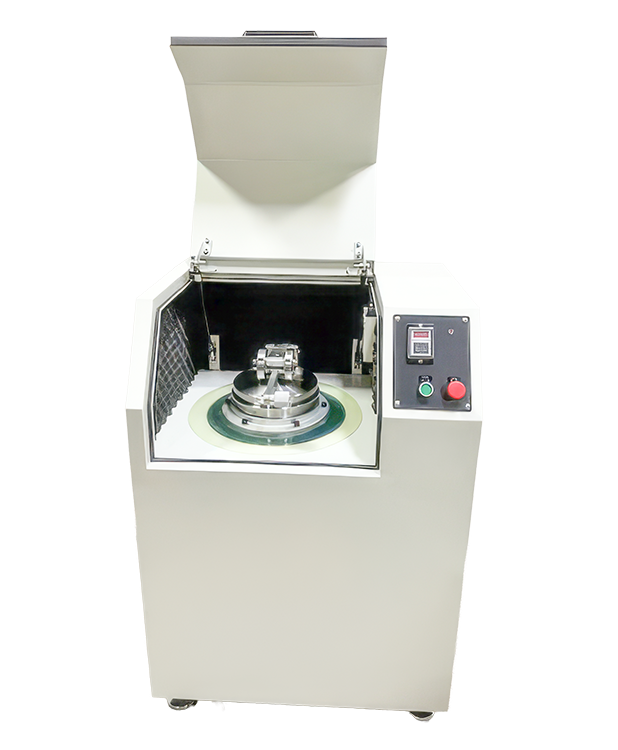

M100 Ring & Puck Pulverizer 230v-60Hz-3ph (incl 400cc Grinding Set)

Description

M100 Ring & Puck Pulverizer 230v-60Hz-3ph

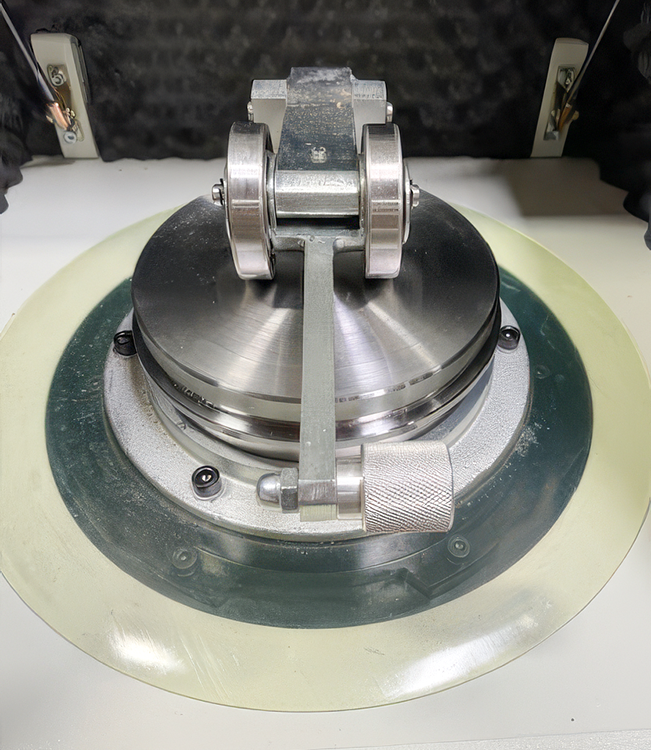

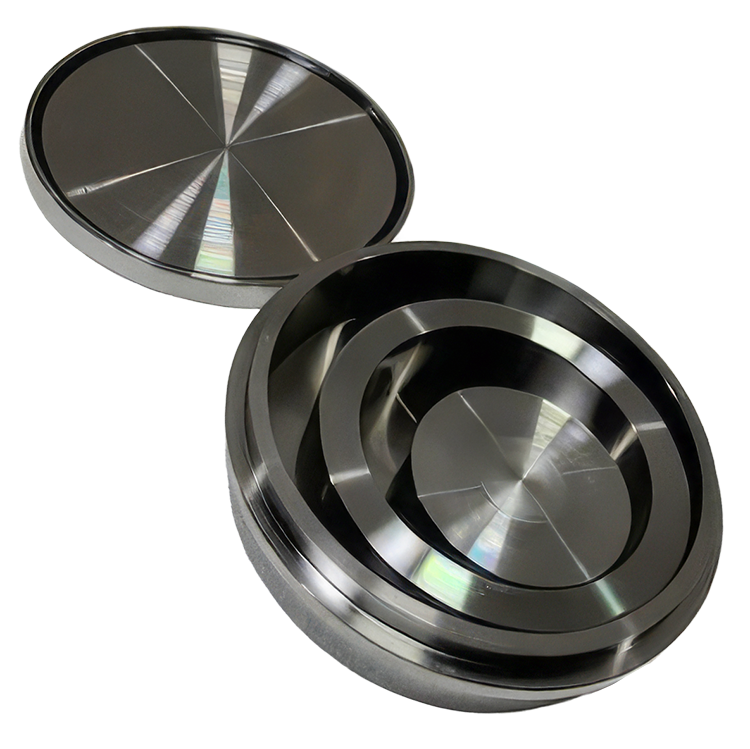

Includes 400cc Manganese-CrMo Alloy Steel Ring & Puck Set
(Bowl, Lid, Ring, Puck, O-ring lid seal)
Chemical Composition (%):
Chromium: 0.97
Manganese: 0.74
Carbon: 0.40
Silicon: 0.22
Molybdenum: 0.17
Titanium: 0.015
Nickel: 0.01
Copper: 0.01
Phosphorous: 0.01
Vanadium: 0.006
Sulfur: 0.004
Tungsten: 0.001
(Steel grade: 42CrMoA)

For efficient grinding of production samples.  A specially designed motor directly coupled to a rotating eccentric swings the bowl and components at a precise speed and distance for maximum grinding efficiency.

Dragon M100 Pulverizer Features:
230v – 60Hz – 3ph motor

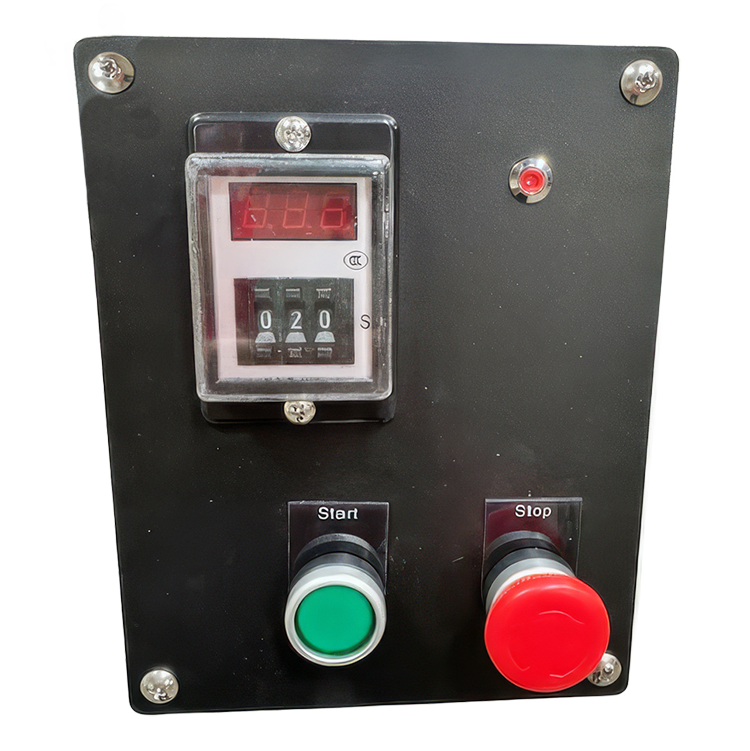

Starting switch and timer.
Sound Enclosure (Insulated cabinet for reduced operating noise).

Overall Dimensions: 29″ x 23″ 42″
Item Weight: 507 lbs (230kg)
