Economy Sieve Shaker, 12″ Sieves- 115v

Description

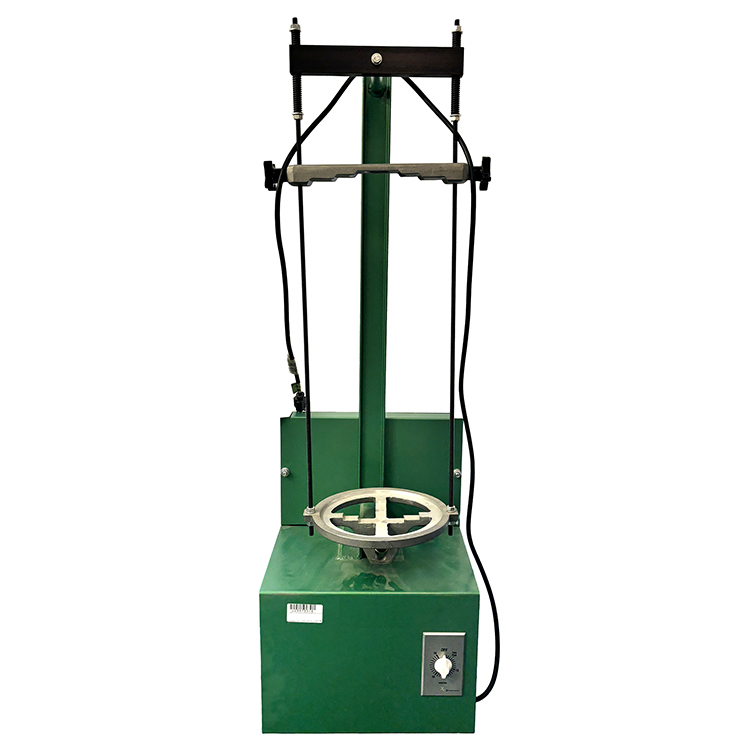

Econo Sieve Shaker  for 8" and 12" Sieves- 115 volt/60hz
Effective design for accurate separation of materials. Suited for laboratory or field use.
Built in Timer, accepts 8" (203mm) and 12" (305 mm) standard test sieves.

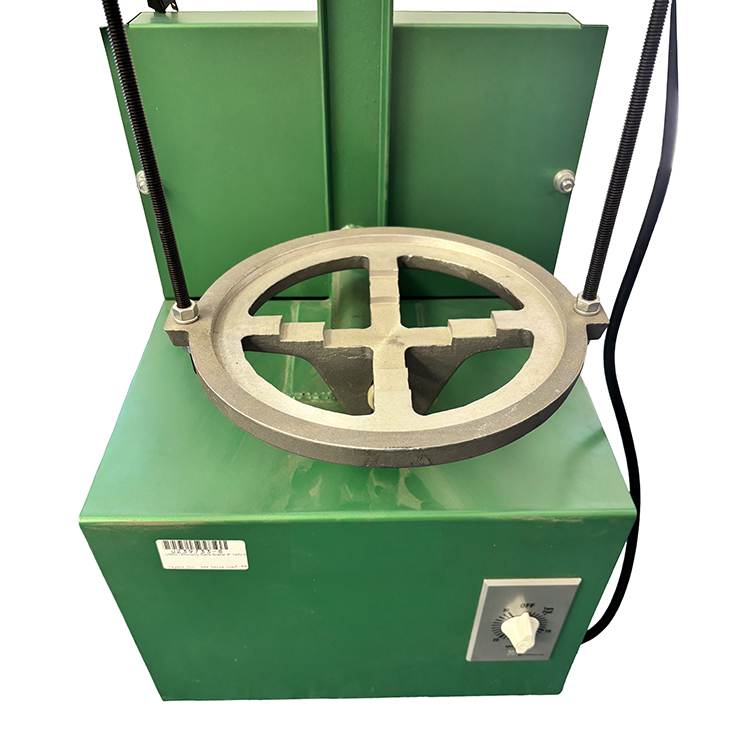

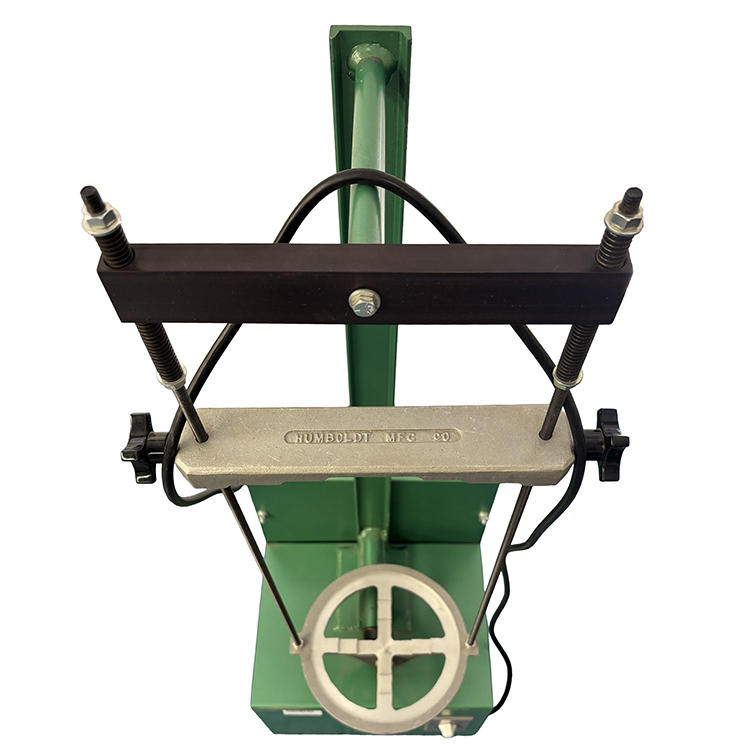

The Econo Sieve Shaker assures accurate sieving or grading tests by utilizing an upward and downward motion for the separation of materials. The platform and sieve cross bar are engineered for either 8" diameter by 2" high or 12" diameter by 3" high standard test sieves plus pan and cover.

Specifications
Capacity – Eleven (11) 8" Sieves * Seven (7) 10" Sieves * Seven (7) 12" Sieves

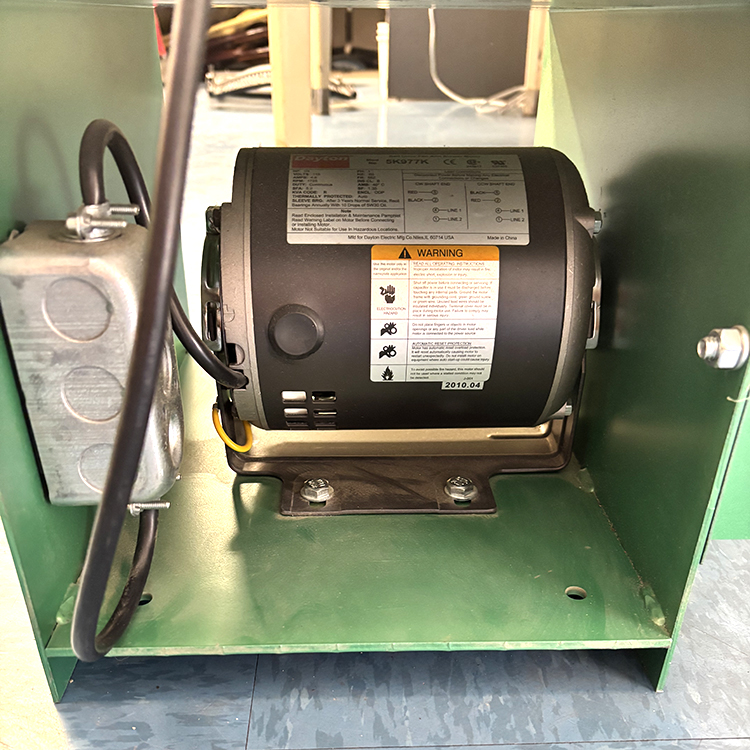

Timer – Built in 0 – 30 minutes * Dimensions – 21" W x 18" D x 47" H * Motor – 1/4 HP
Available as: 110v – 60Hz * 220v – 60Hz * 220v – 50Hz
Weight – 89 lbs * Shipping Weight – 139 lbs  ( 48" x 42" x 54" )

Download Operating Instructions Manual PDF – 75 KB
