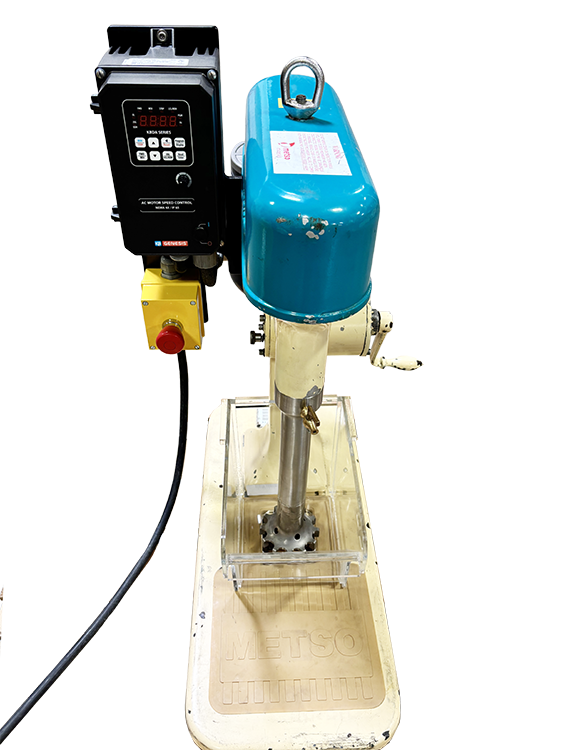

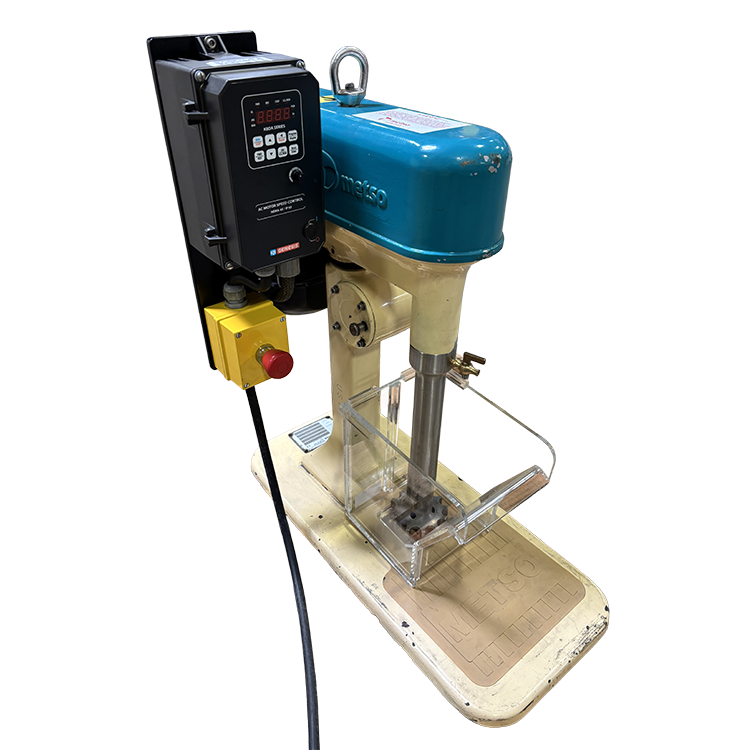

USED – Refurbished Denver D12 Laboratory Flotation Machine

Description

USED – Refurbished Metso/Denver D12 Laboratory Flotation Machine

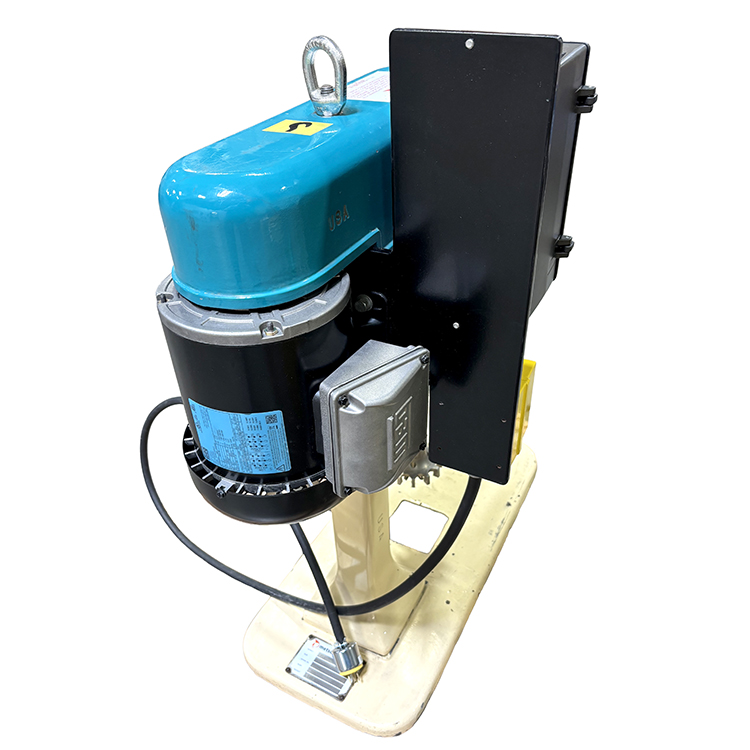

Fitted with a NEW 1/2 HP, TEFC Motor: (prewired for 115 volt/60 hz, easily reconnected for 230 volt 50-60/hz via VFD setting)

Fitted with NEW Digital VFD Controller: CE rated design, digital tachometer, variable speed via VFD (variable frequency speed controller).

Model D-12 Laboratory Flotation Machine INCLUDES the following accessories:

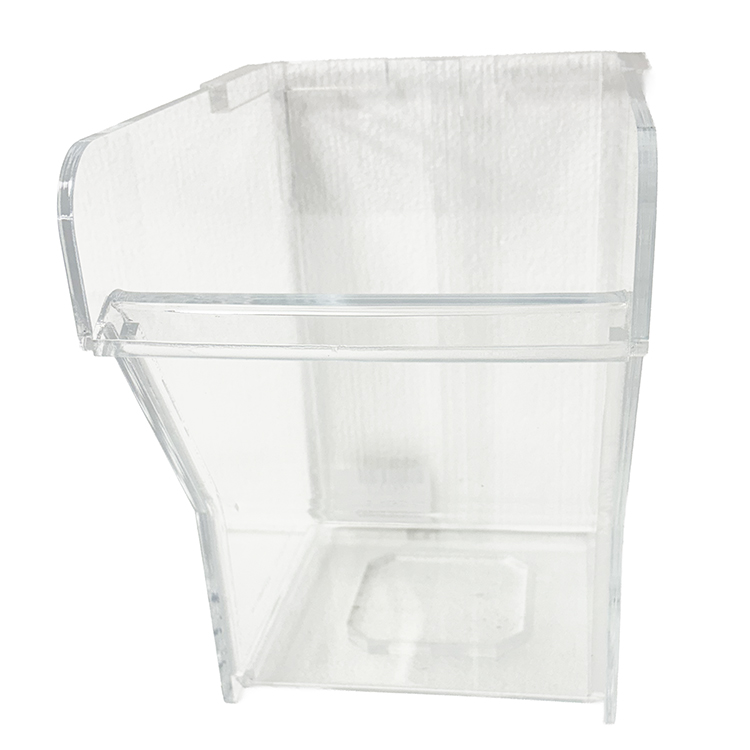

-One (1) 1000g Acrylic Tank
-One (1) 3-7/8″ Diameter removable Stainless Steel Diffusion Hood
-One (1) 2-7/8″ Diameter removable Stainless Steel Impeller

Replacement Parts and Accessories Available for additional cost:
CLICK to Open D-12 Flotation Parts

Features:
Stainless steel shaft with anti-friction spindle bearings and stainless standpipe with air control valve.

Mechanism is supported on a spring-balanced movable arm that is raised or lowered on a column by a hand crank through rack and pinion bearing and can be locked at any desired height.

Do not use on a GFI circuit. This will cause the circuit breaker to trip and the equipment will not operate.

Metso/Denver D-12 Laboratory Flotation Machine CE Rated
Metso Part #: ZX11391925
Digital Tachometer
Voltage: 115/230-50/60hz (voltage is set/changed with VFD setting)
RPM: 1800
HP: 1/2
Shipping Dimensions: 32″ x 50″ x 42″
Shipping Weight: 275 lbs

Download D-12 Parts Diagram PDF – 6 mb

Download Instruction and Operation Manual – 1.8 mb
New Model Denver CE D-12

Download Instruction and Operation Manual – 1.2 mb
Legacy Old Model Denver D-1

Download CE Certificate and Certificate of Conformance PDF

Download Instructions for setting voltage of VFD drive
